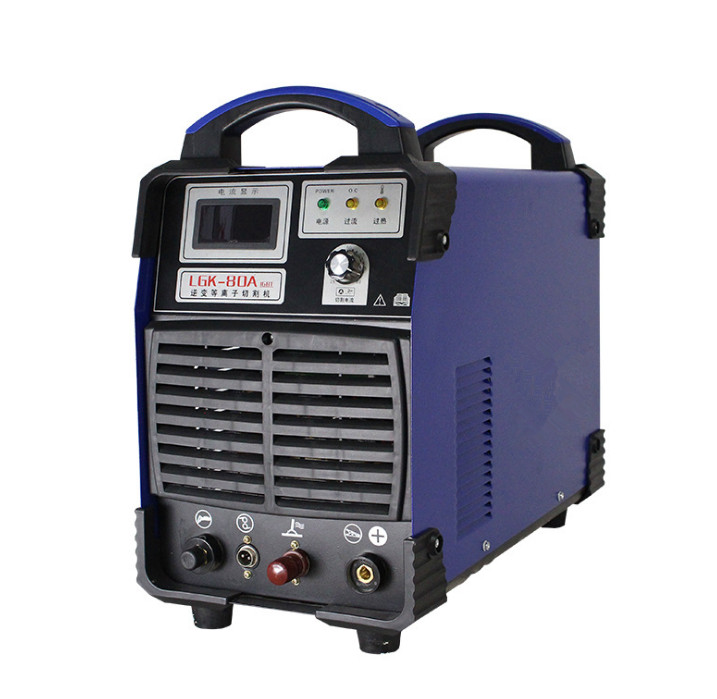

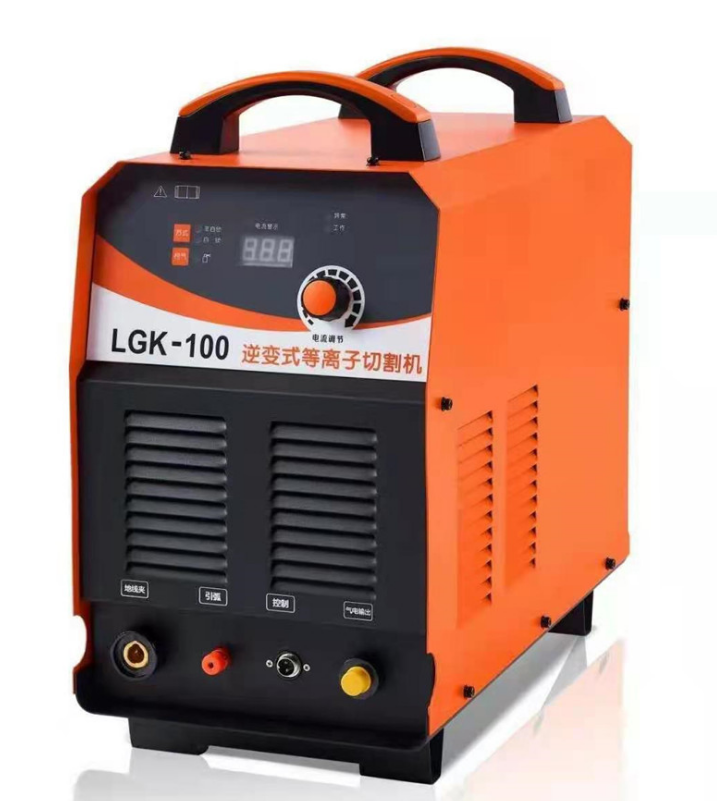

Plasma cut machine

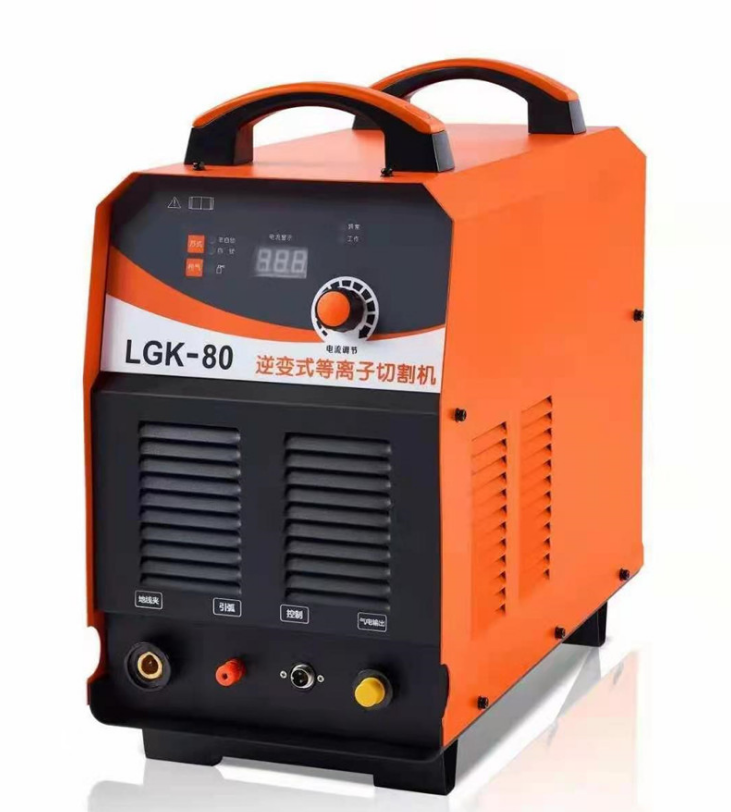

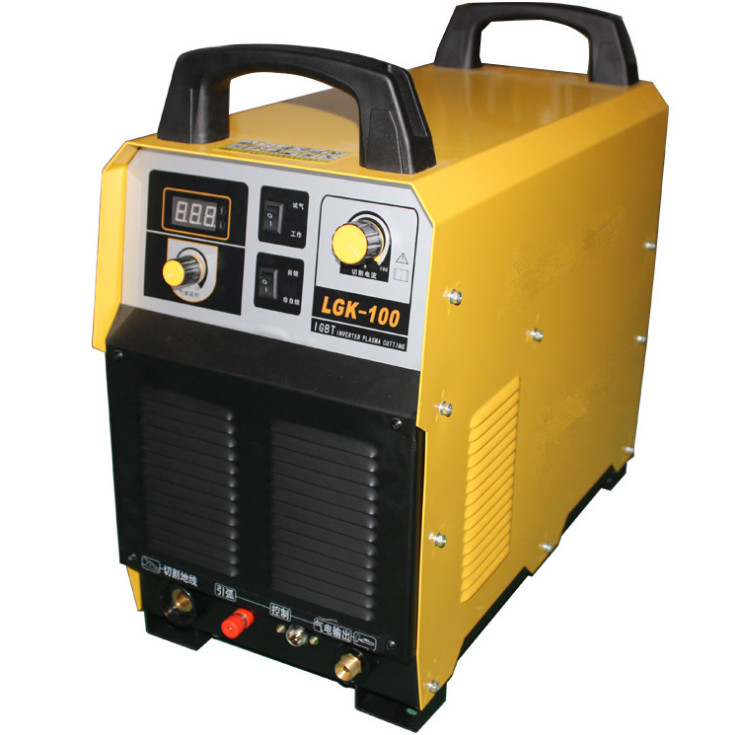

| Model | CUT-40 | CUT-60 | LGK7-60 | LGK7-80 | LGK7-100 |
| Input voltage |
AC220V±10% 50/60Hz |
AC220V±10% 50/60Hz |
AC380V±10% 50/60Hz |
AC380V±10% 50/60Hz |
AC380V±10% 50/60Hz |
| Input power capacity(KVA) | 4.8 | 8.2 | 7.9 | 19.4 | 23 |
| Rated load duratiom | 60% | 60% | 60% | 60% | 0.6 |
| Power factor | 0.93 | 0.93 | 0.93 | 0.93 | 0.93 |
| Efficiency | 85% | 85% | 85% | 0.85 | 85% |
| Insulation Level | H | H | H | H | H |
| Enclosure protection level | IP21 | IP21 | IP21 | IP21 | IP21 |
| Rated output current(A) | 40 | 60 | 60 | 80 | 10000% |
| Current regulation range(A) | 10-40 | 20-60 | 20-60 | 20-80 | 30-100 |
| No load voltage(V) | 240 | 260 | 260 | 256 | 280 |
| Operating voltage(V) | 96 | 104 | 104 | 112 | 120 |
| Recommended air pressure(Mpa) | 0.4 | 0.5 | 0.5 | 0.6 | 0.6 |
| Recommended exhaust volume(M fand/min) | 0.17 | 0.25 | 0.25 | 0.36 | 0.36 |
| Maximum cutting thickness (mm) | 1-8 | 1-20 | 1-15 | 1-30 | 1-35 |
| Arc starting mode | Contact | Contact | Contact | Non-contact | Non-contact |
| Weight (Kg) | 8 | 17 | 18 | 22 | 25 |
| Overall dimension (mm) | 370x155x280 | 620x280x495 | 480x200x380 | 520x260x480 | 580x280x580 |
|
