Cast iron welding electrode
Product Information
| Model | Chemical Composition | |||||||||
| C | Mn | Si | S | Ni | Al | Cu | Fe | others | Application | |
| AWS EC1 | 2.7 | 0.4 | 4.2 | 0.004 | 0.005 | — | 0.027 | 73.9 | — | welding up the defects of gray iron castings |

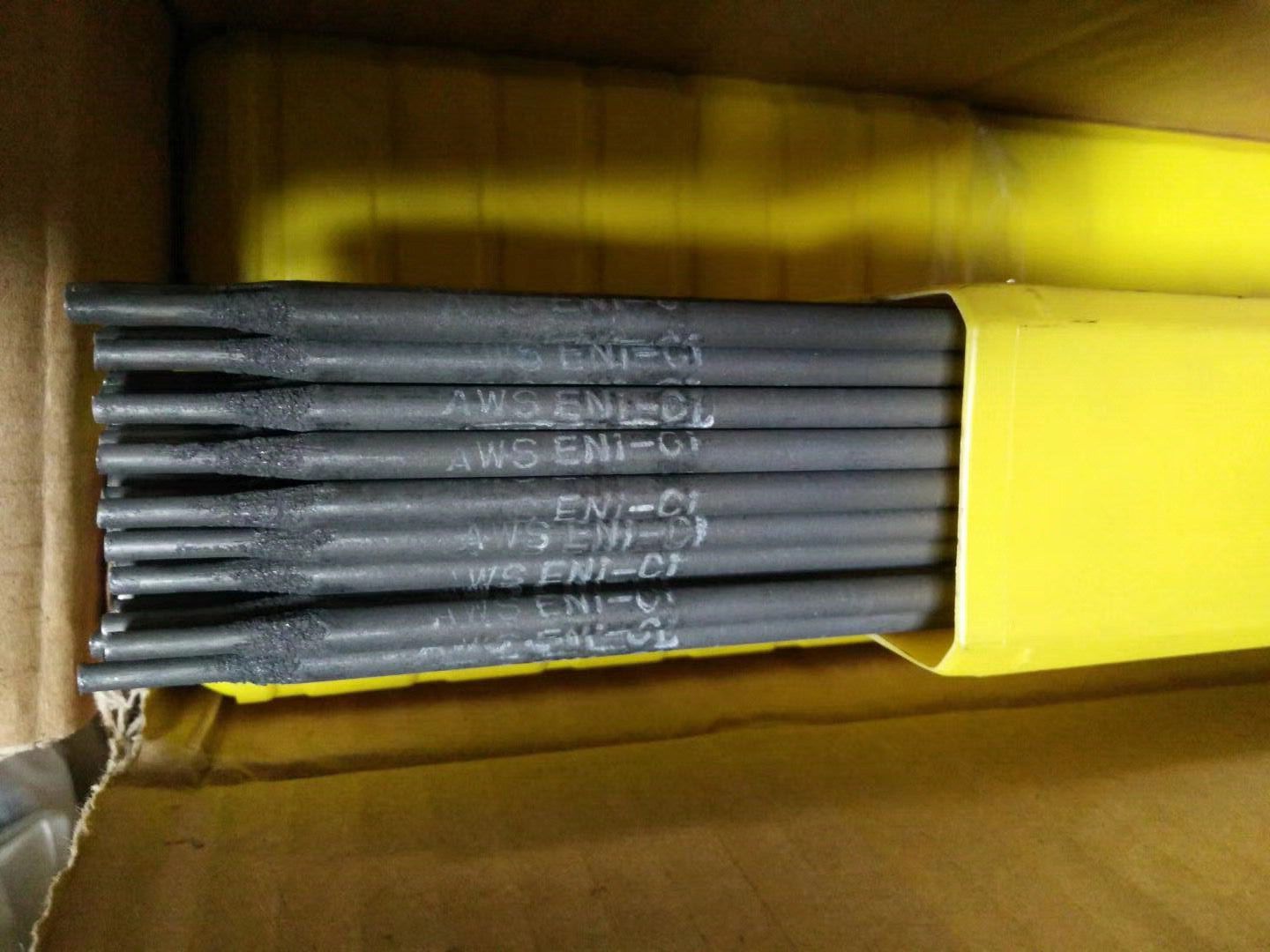

| AWS ENi-C1 | 0.59 | 0.07 | 1.5 | 0.004 | 95.1 | 0.032 | 0.002 | 0.021 | 0.14 | It is suitable for the welding of thin pieces of cast iron welding and machining surface,such as cylinder heads,important gray cast iron engine blocks,gear boxes,and machine tool and so on |
| AWS ENiFe-C1 | 0.71 | 0.24 | 1 | 0.007 | 55.16 | 0.054 | 0.055 | 42.7 | 0.23 | It is suitable for the welding of high strength gray iron and nodular cast iron,such as cylinder,engine block,gear box etc |
| AWS ENiCu-B | 0.35-0.55 | ≤2.30 | ≤0.75 | ≤0.025 | 60-70 | — | 25-35 | 3.0-6.0 | — | It is suitable for the welding of gray iron casting with less strength demanding |

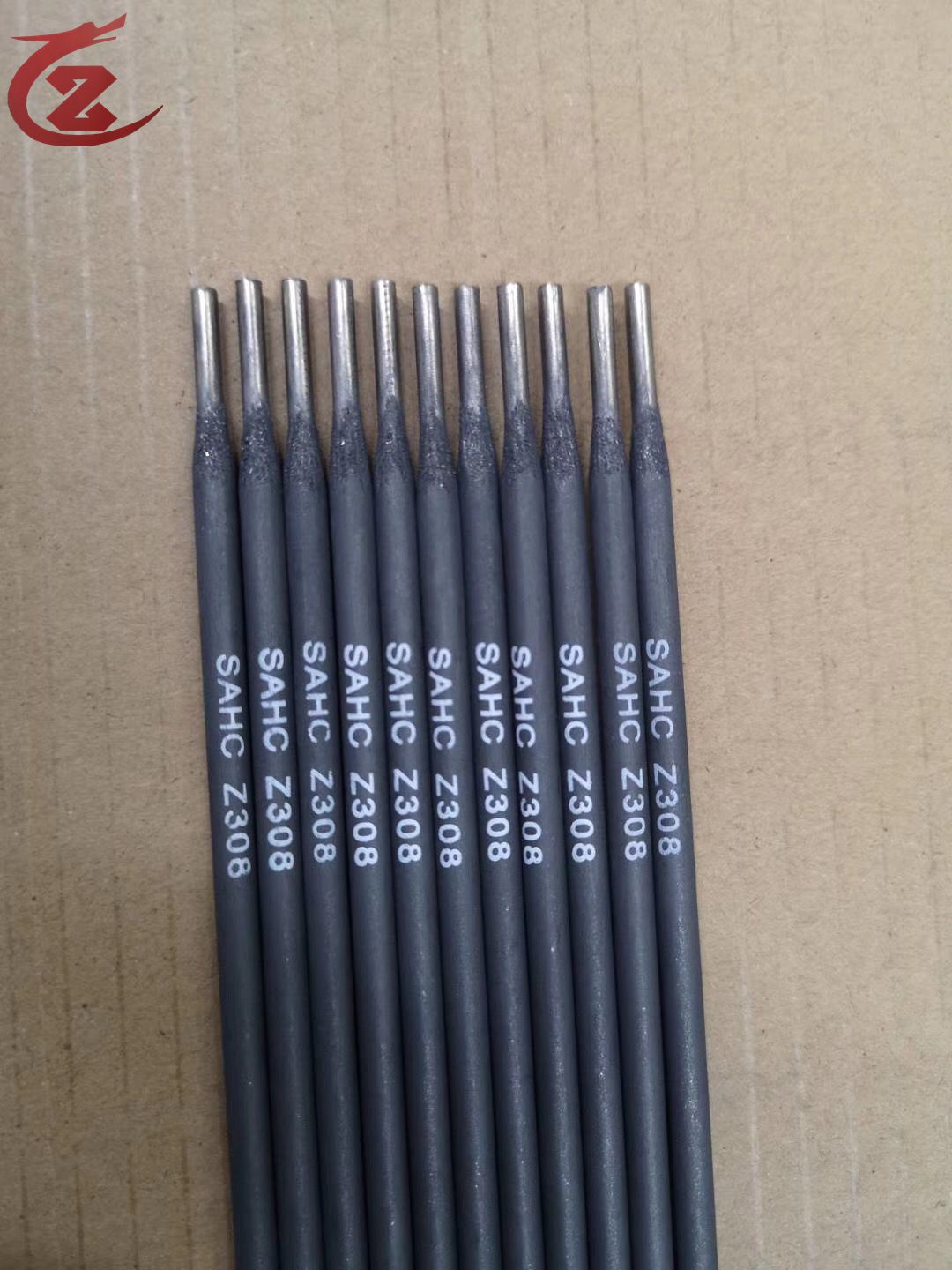

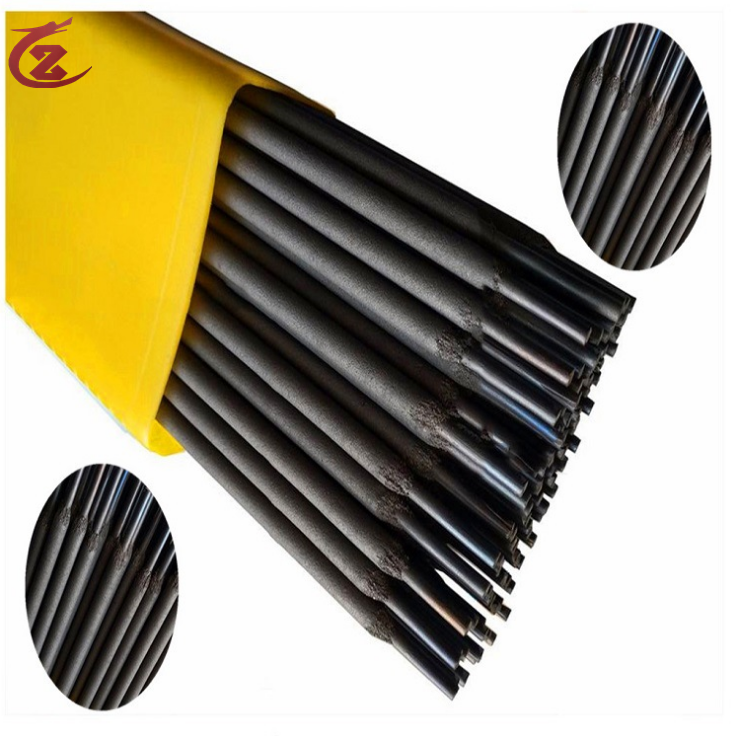

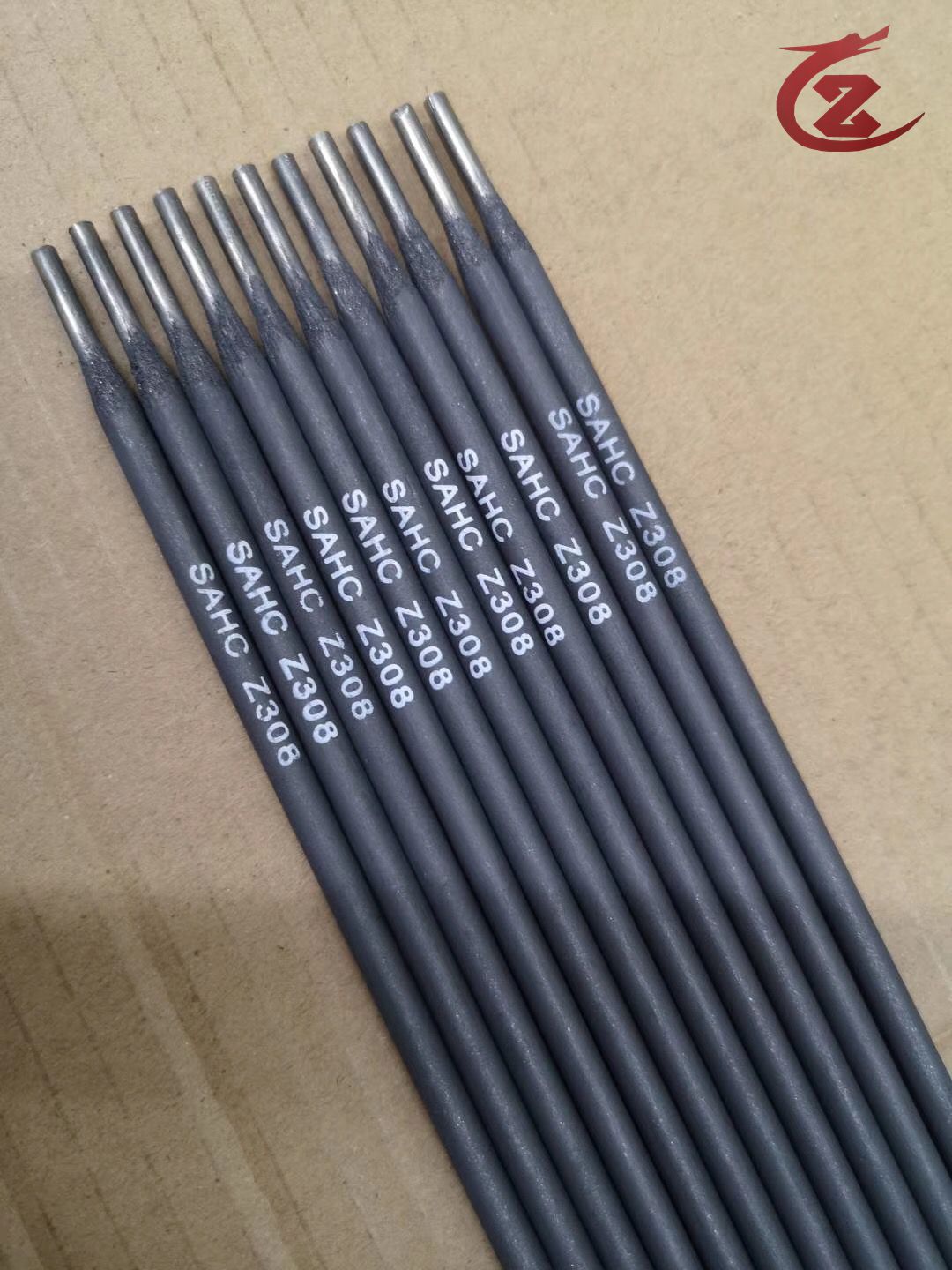

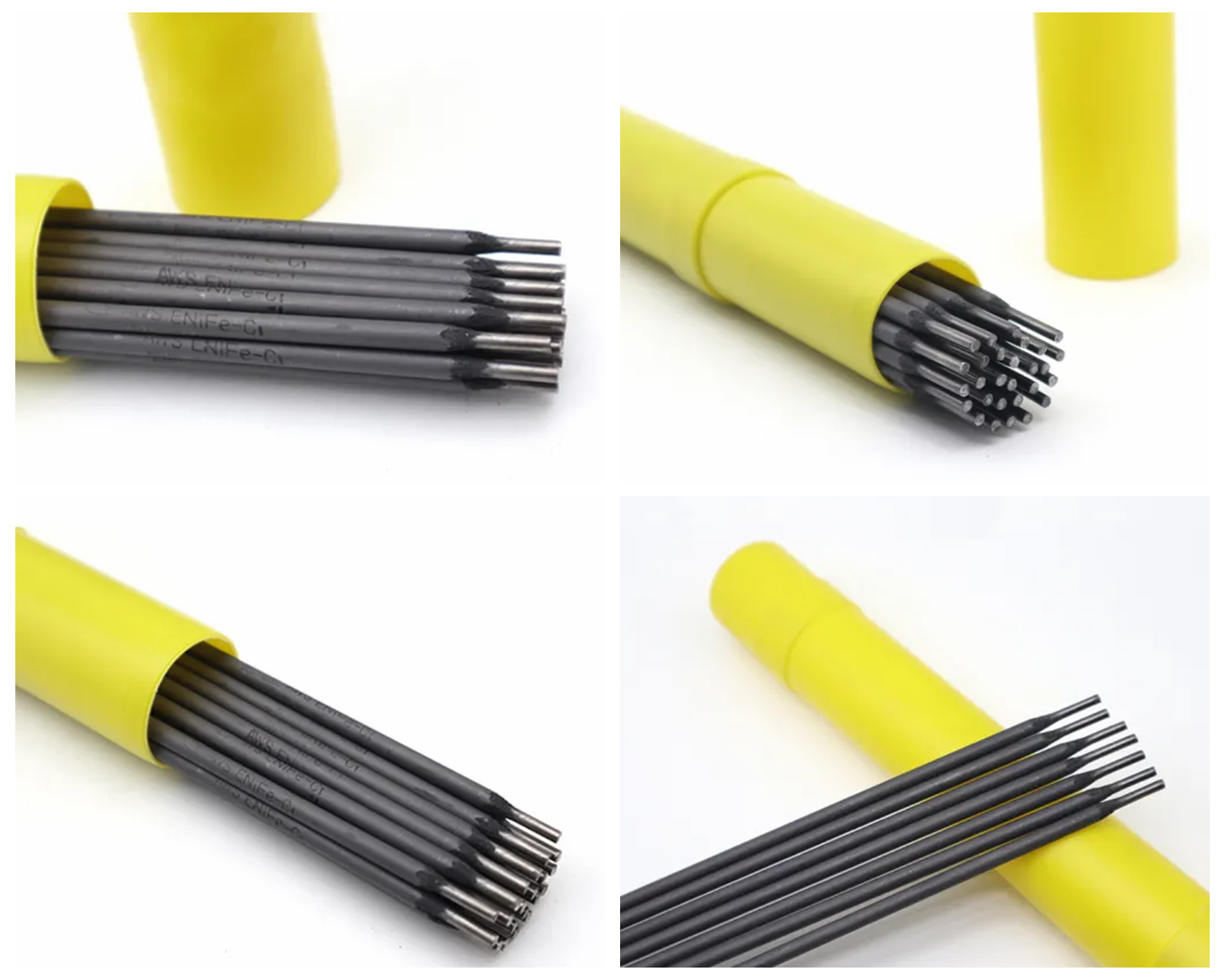

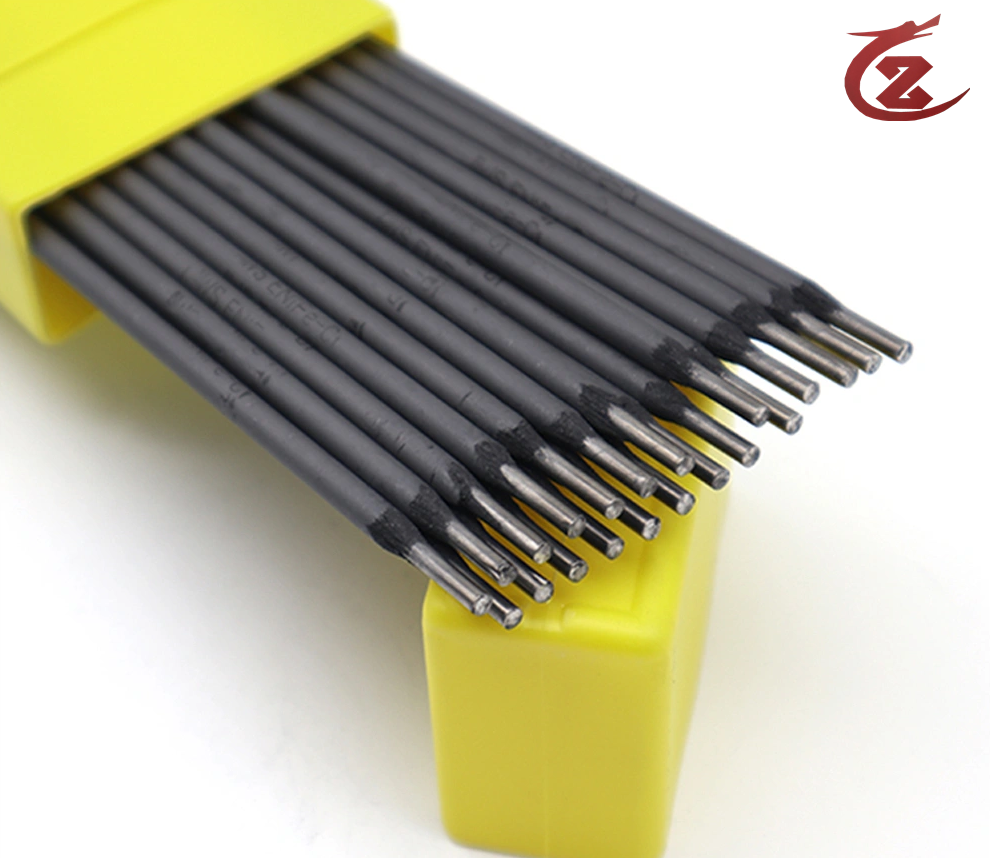

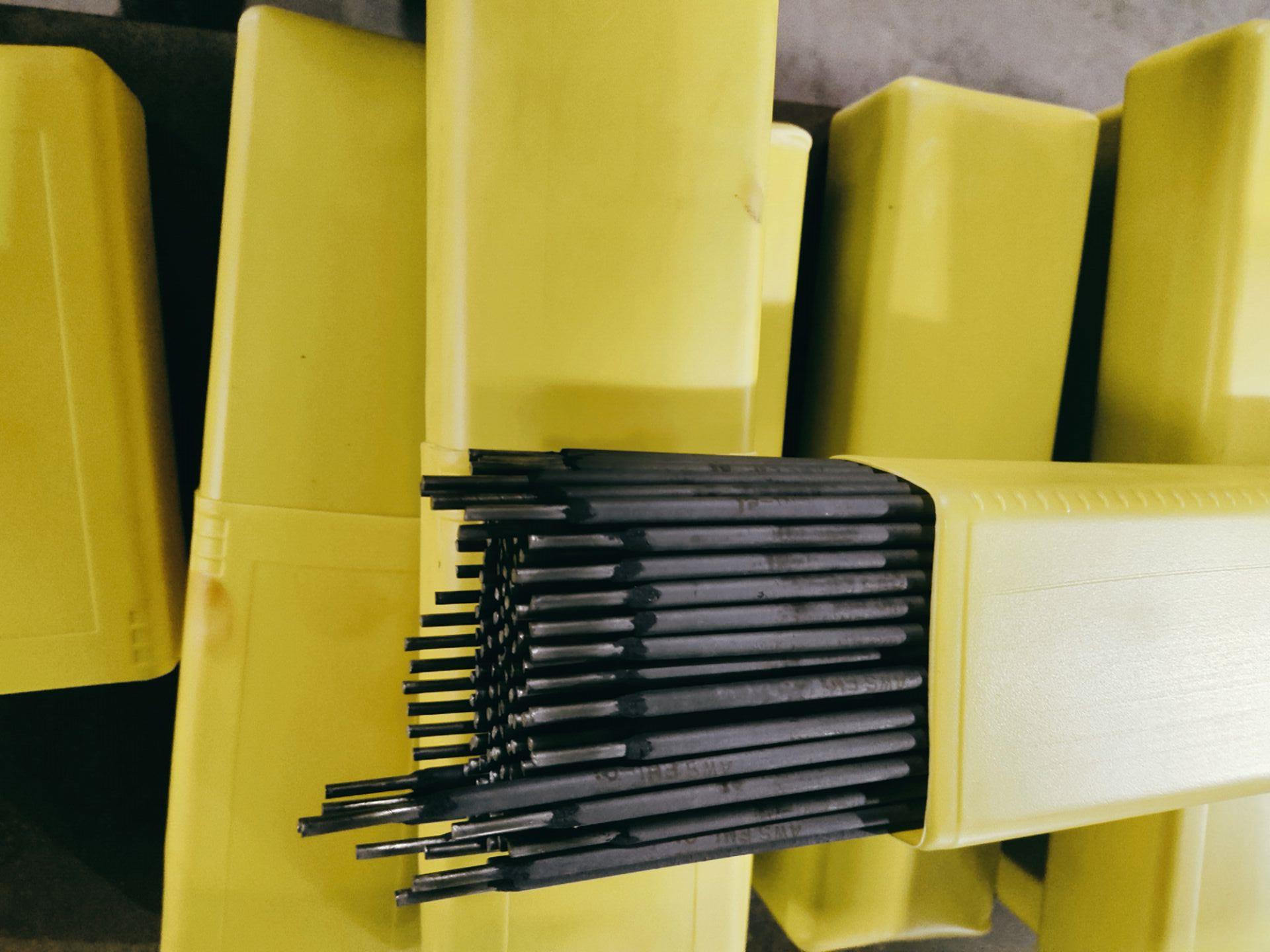

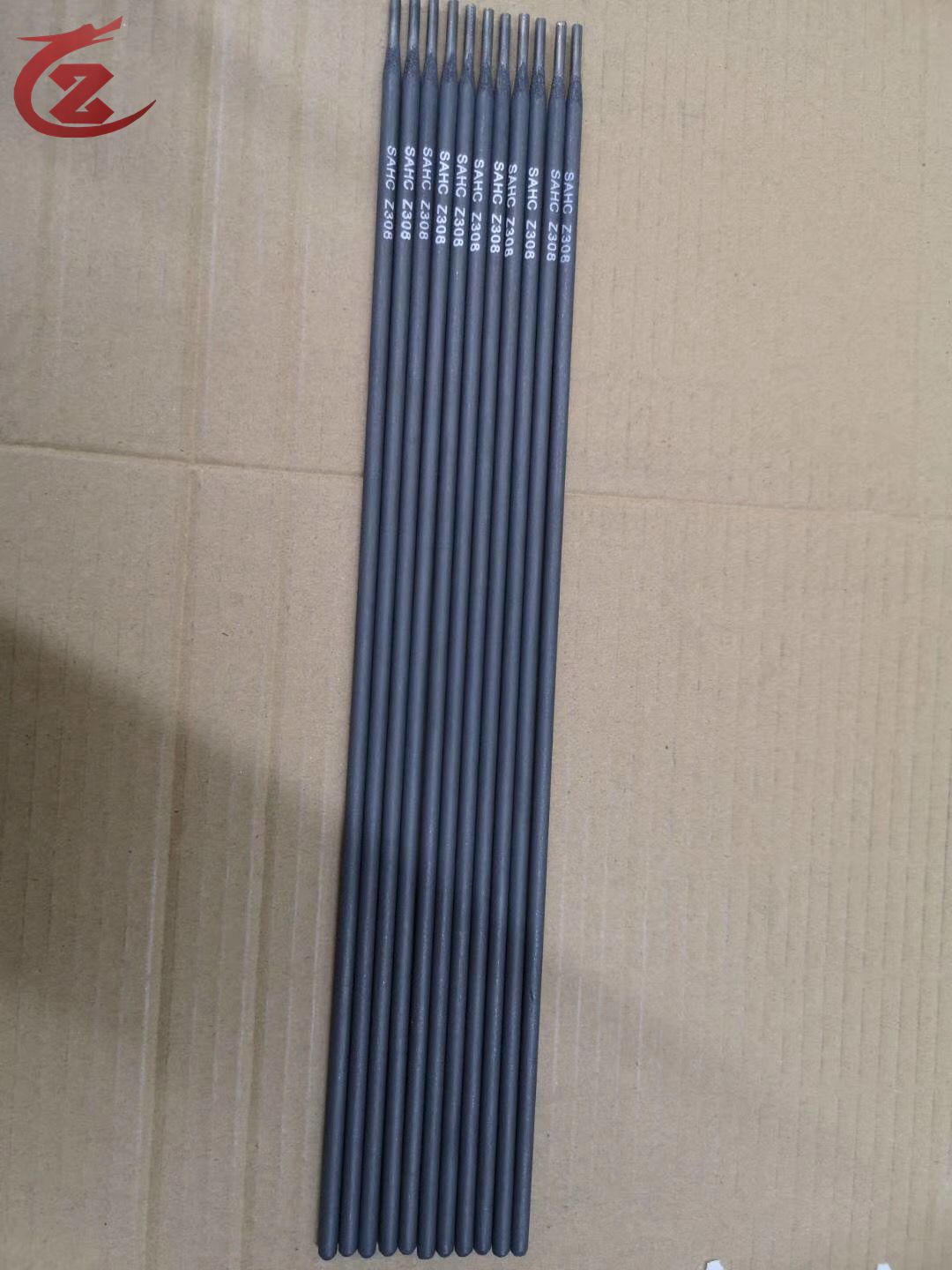

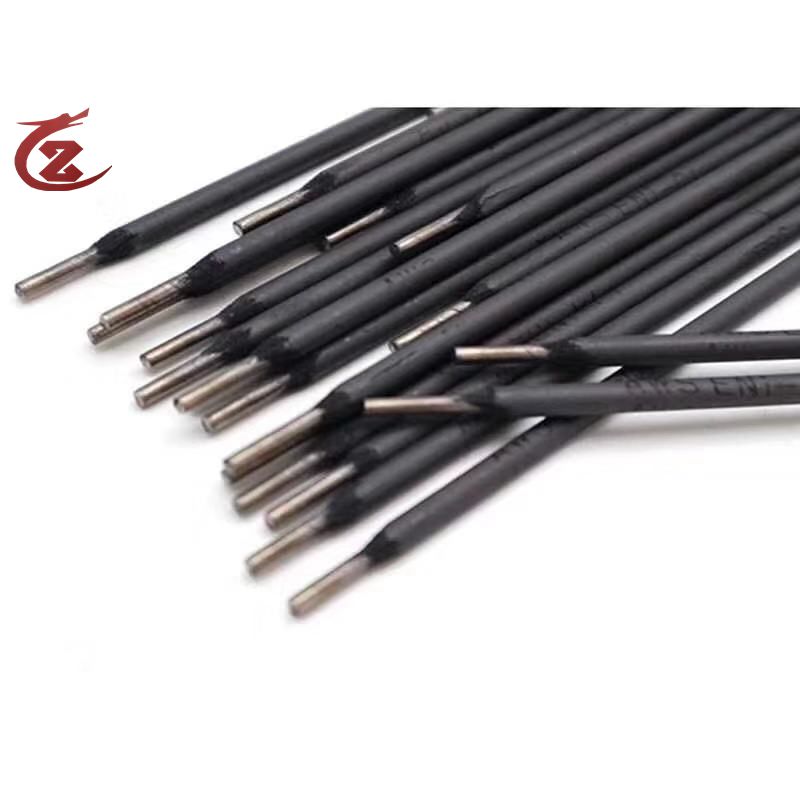

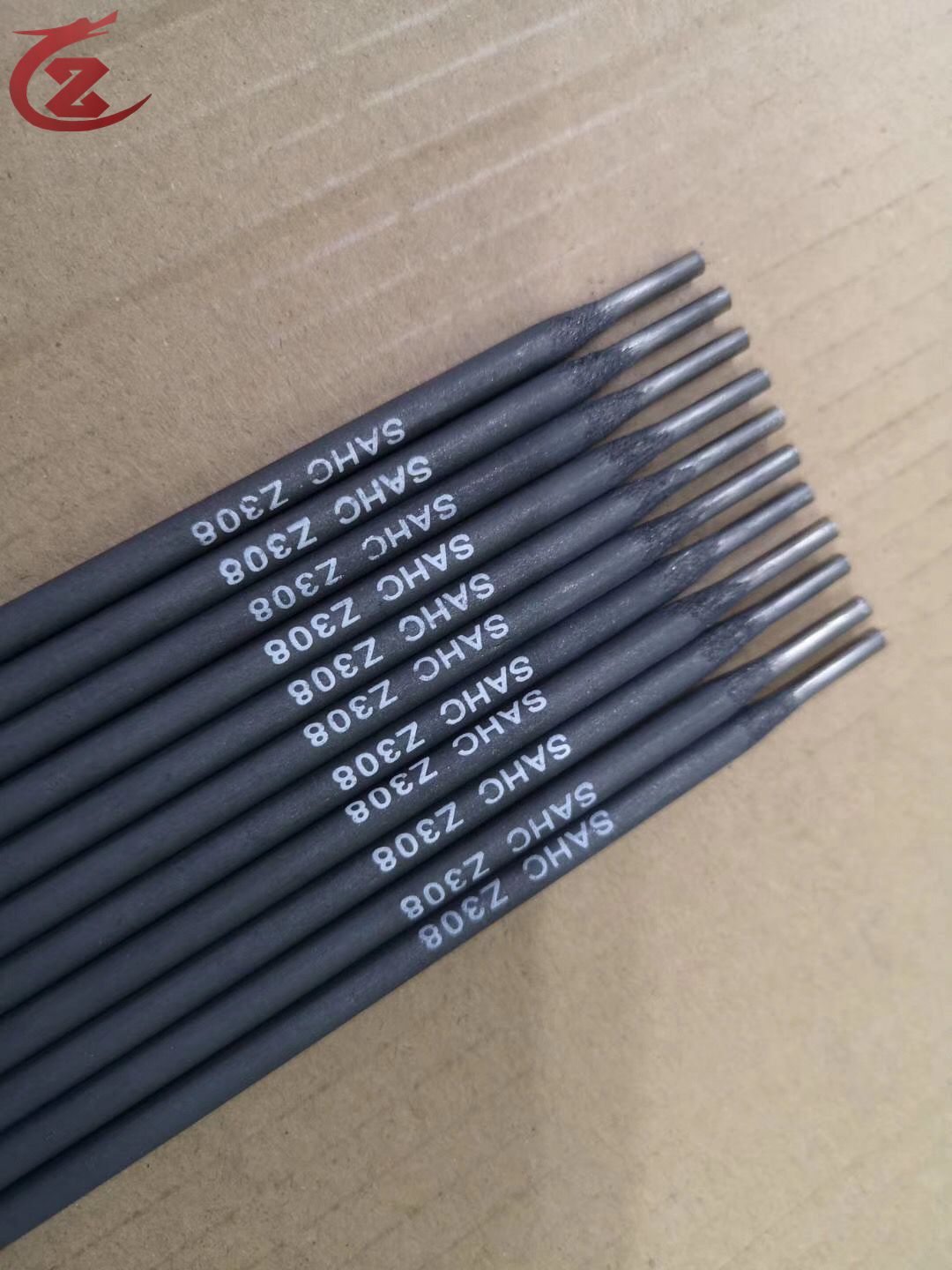

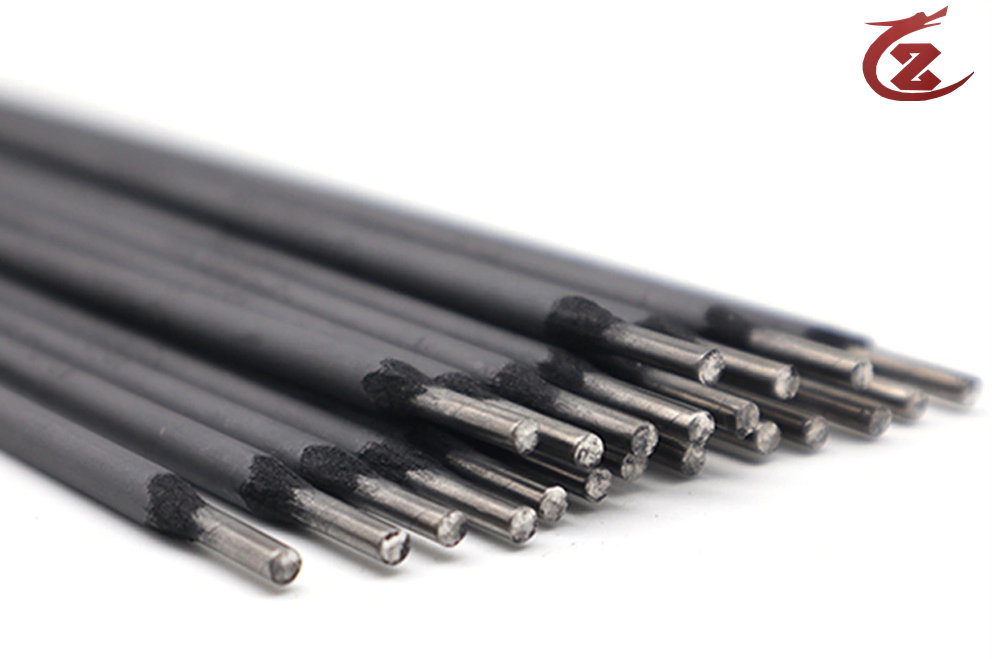

More Pictures:
|
