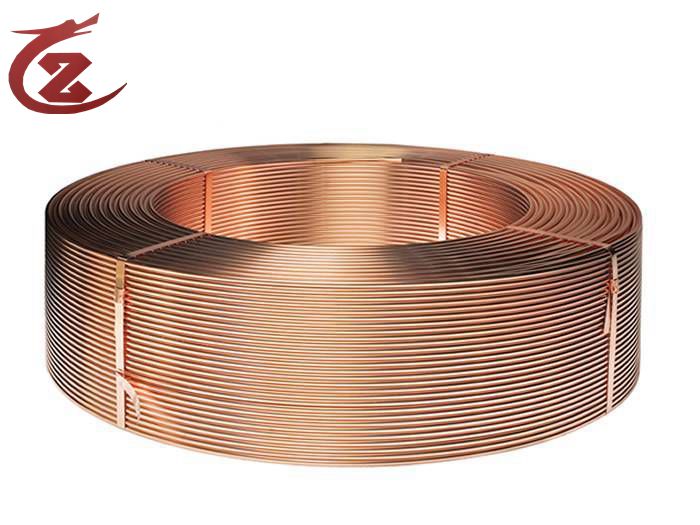

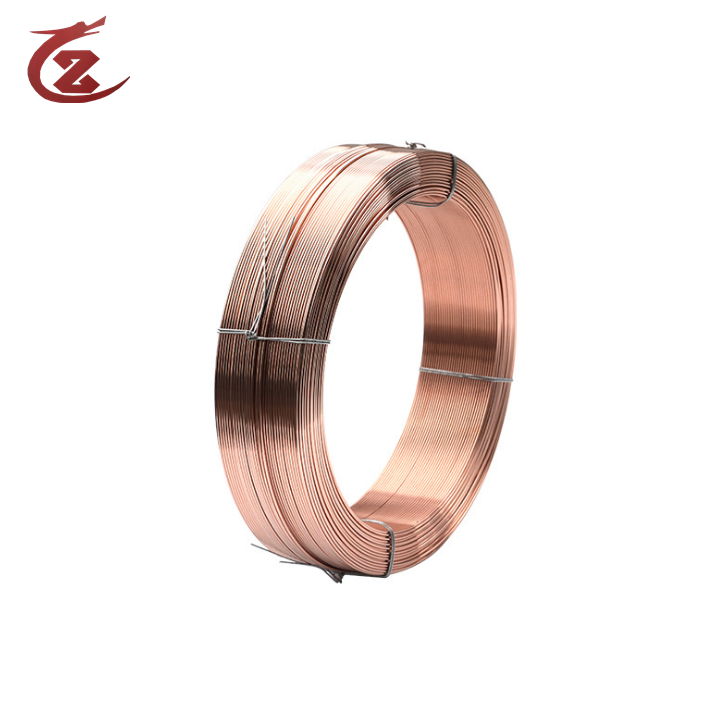

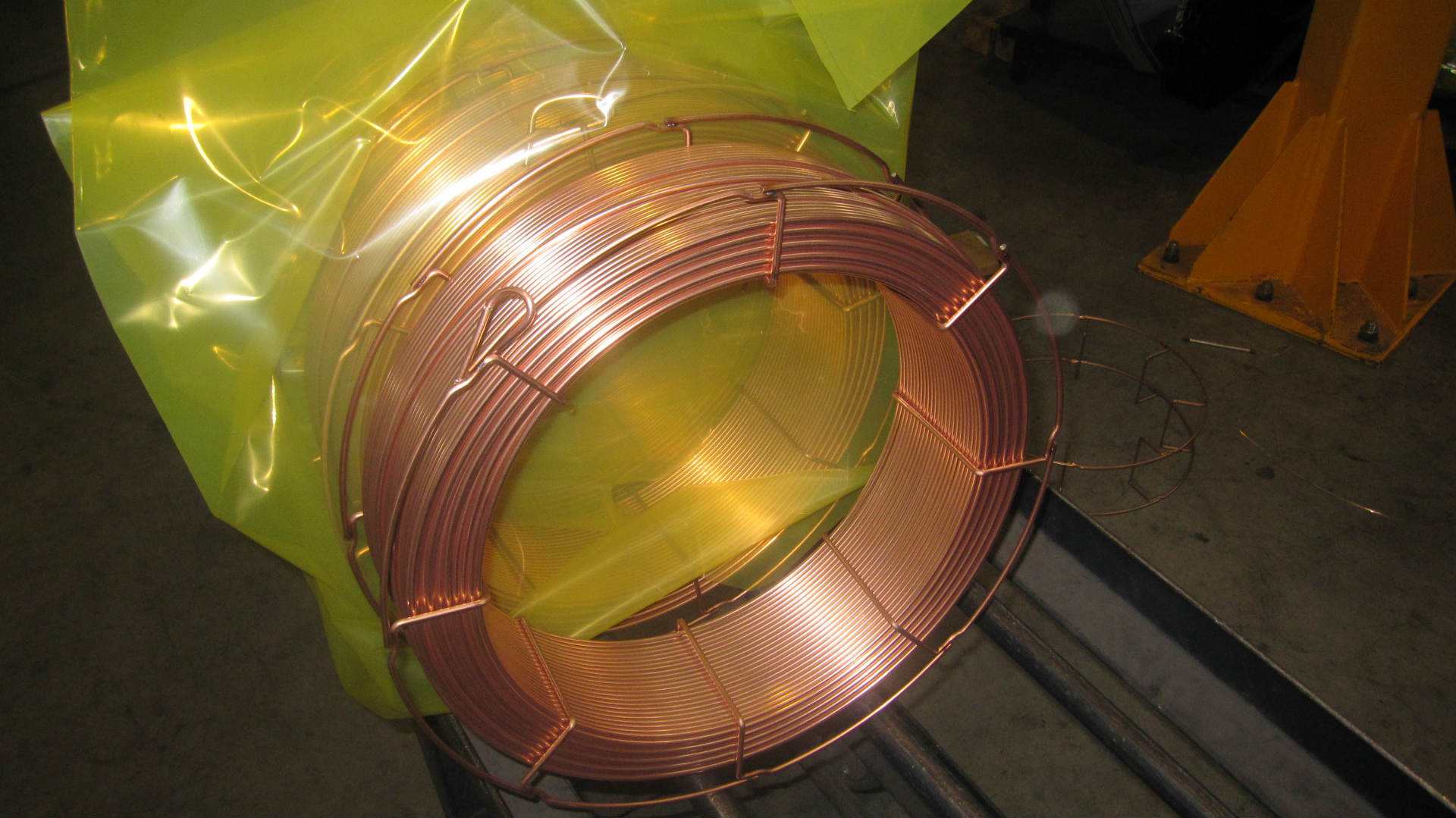

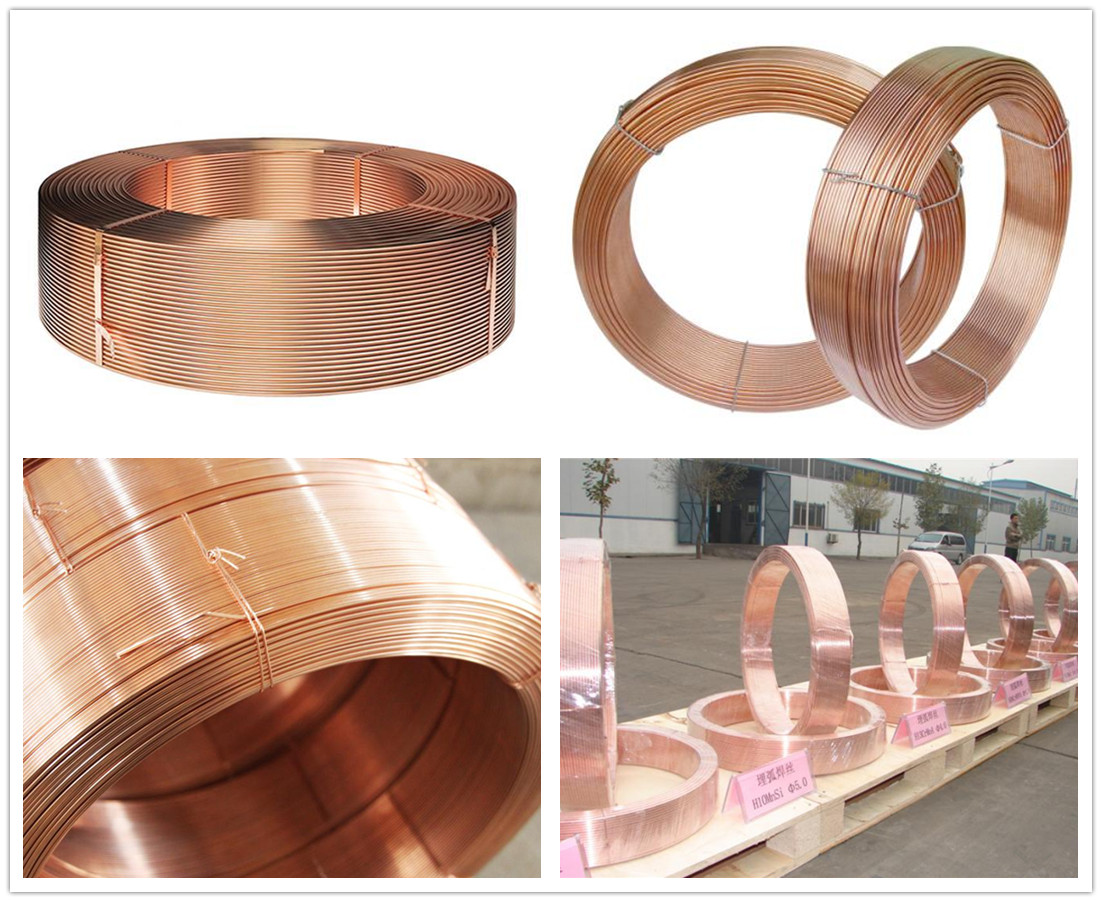

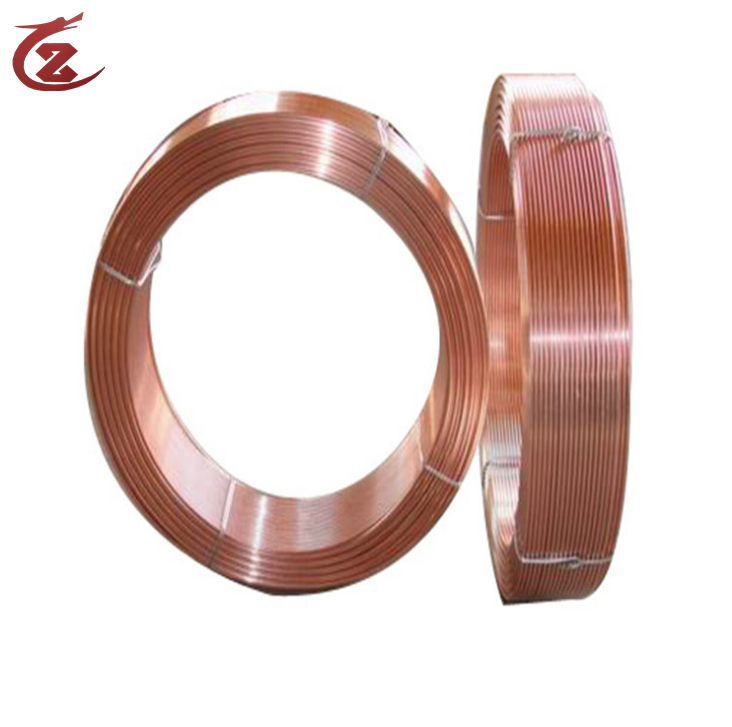

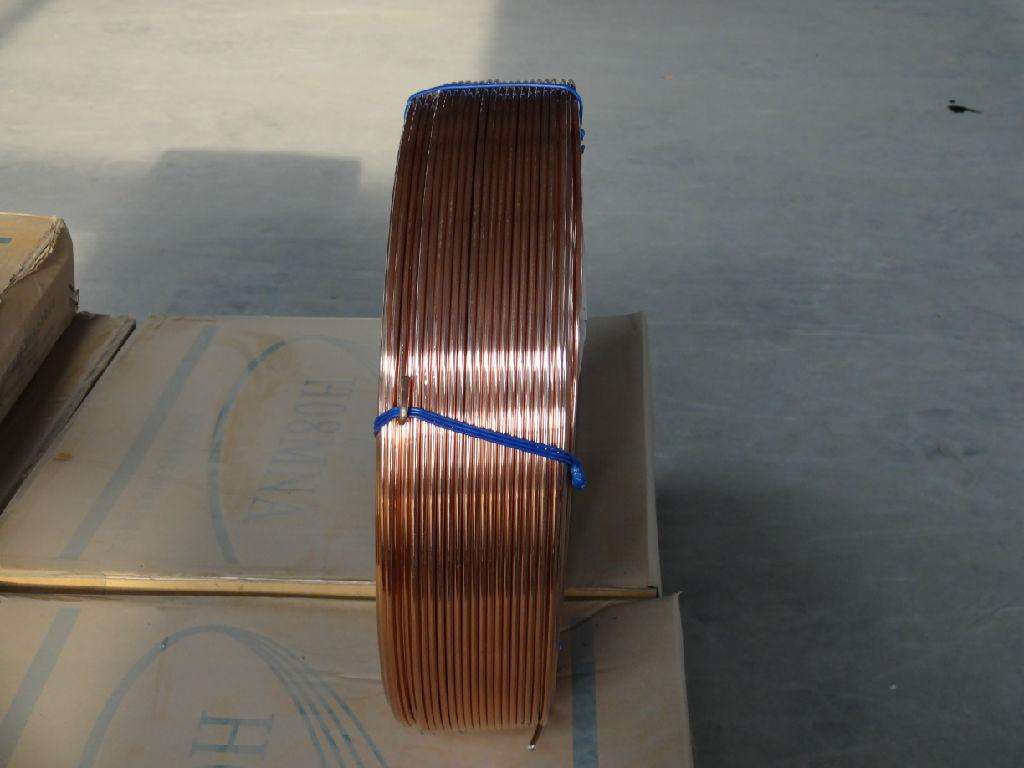

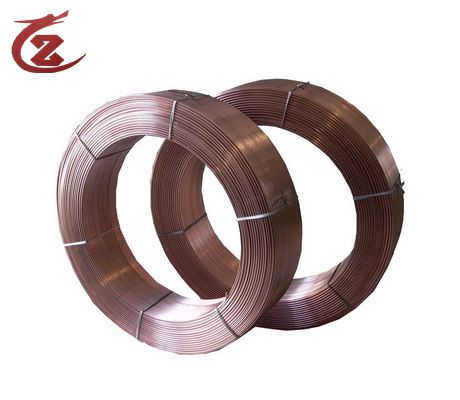

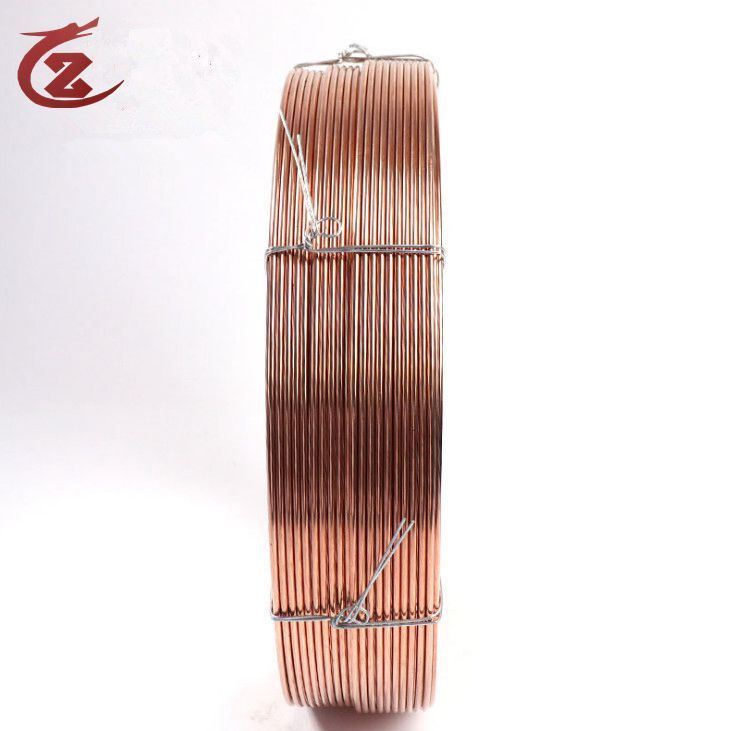

Submerged arc welding wire
Product information:
Submerged arc welding wires have the advantages of excellent weldability and mechanical behavior, stable arc, easy deslagging, good weld mounding, and high efficiency. They are applicable to welding of longitudinal circumferential welds, large-thickness grooves and so on of pressure vessels, heavy machinery, large-caliber oil, gas and water pipes, transportation machinery, ships, etc.
| Welding Process | Item Name | GB/TB | AWS | One Example of the Mechanical Performance of Deposited Metal | One Example of the Mechanical Performance of Deposited Metal | With flux | ||||||||||
| Yield Strength MPa | Tensile Strength MPa | Elongation (%) | Ballistic Work J(℃) | C | Mn | Si | Cr | Ni | Cu | P | S | |||||
| SAW | HTM08A | H08A | EL8/EL12 | 390 | 500 | 27 | 41(-20) | 0.06 | 0.40 | 0.02 | 0.02 | 0.03 | 0.05 | 0.012 | 0.019 | F43A2 |
| HTM08MnA | H08MnA | EM12 | 400 | 500 | 28 | 42(-20) | 0.06 | 1.27 | 0.05 | 0.02 | 0.03 | 0.03 | 0.014 | 0.015 | F43A2 | |
| HTM08Mn2SiA | H08Mn2SiA | 430 | 550 | 27 | 51(0) | 0.08 | 1.81 | 0.62 | 0.03 | 0.03 | 0.04 | 0.020 | 0.012 | F48A0 | ||
| HTM10Mn2 | H10Mn2 | EH14 | 425 | 570 | 29 | 65(-20) | 0.08 | 1.56 | 0.06 | 0.05 | 0.04 | 0.05 | 0.018 | 0.017 | F48A2 | |
| EM12K | EM12K | 400 | 515 | 29 | 45(-20) | 0.07 | 1.54 | 0.25 | 0.03 | 0.02 | 0.05 | 0.019 | 0.017 | F43A2 | ||
| HTM-55(Ⅲ) | TH500-NQ-Ⅲ | 475 | 580 | 24 | 75(-40) | 0.09 | 1.32 | 0.30 | 0.44 | 0.27 | 0.23 | 0.010 | 0.012 | F48A4 | ||
| Carbon steel, low alloy wire around the row of non-core list of package size | |||
| Diameter （mm） | Weight （Kg） | Diameter size （mm） | Axial dimensions （mm） |
| 2.0、3.0、3.2、4.0、4.5、5.0 | 25 | 300 | 82-85 |
| 100、250、350 | 550 | 162-165 | |
| 250、350 | 630 | 162-165 | |
| 200 | 380 | 175 | |

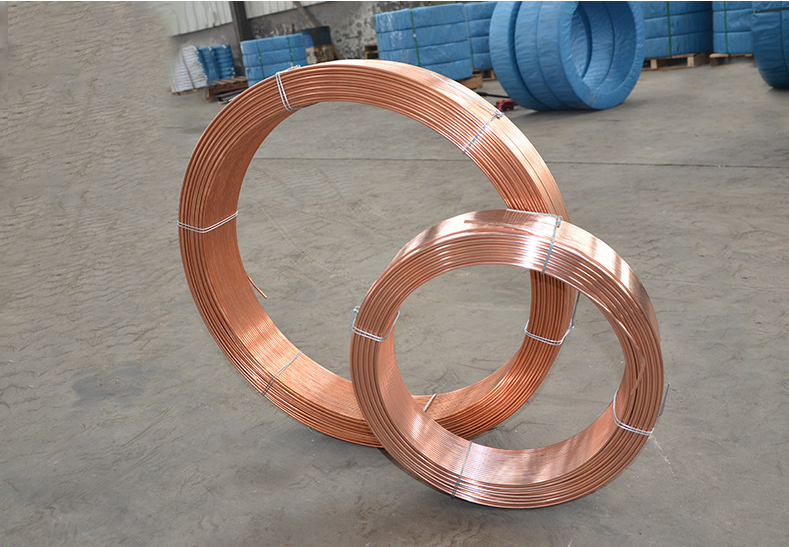

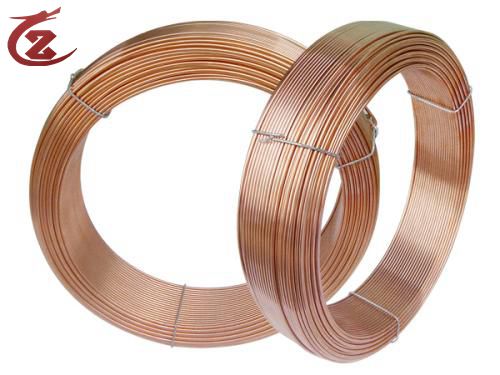

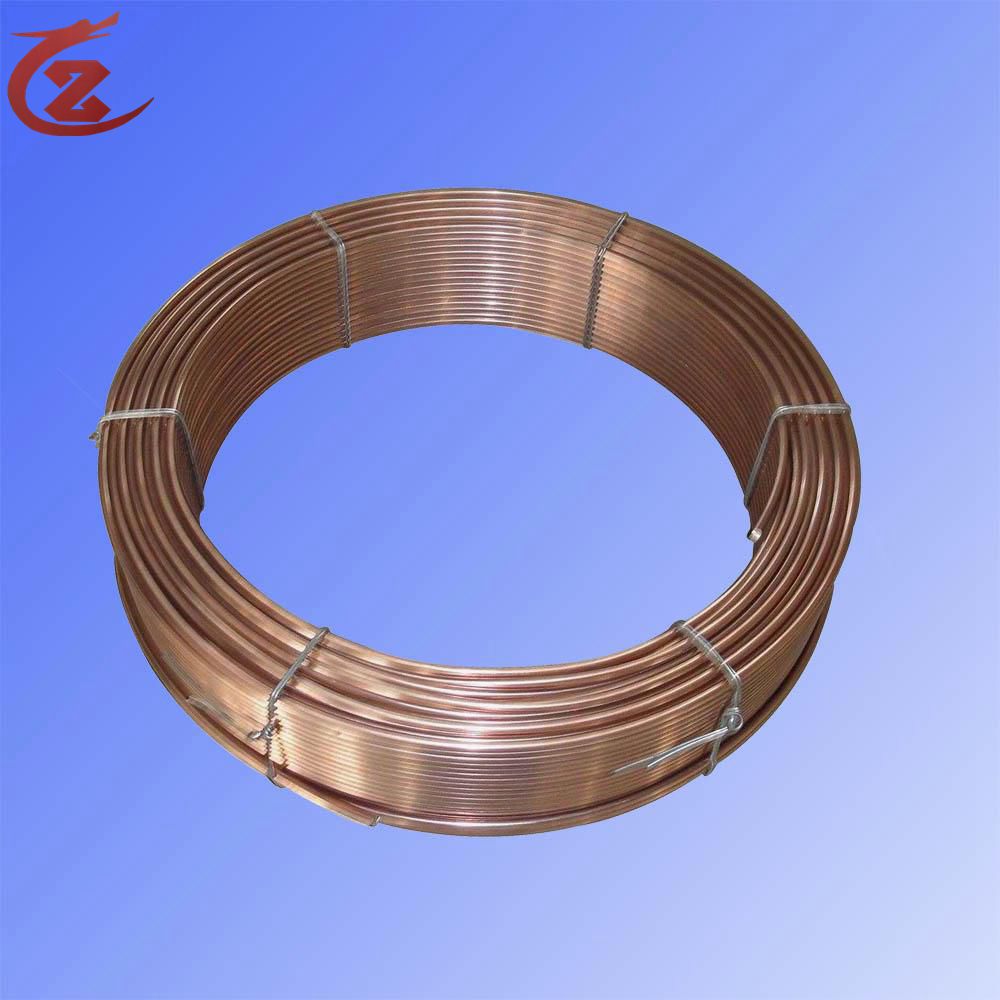

More Pictures:
|
