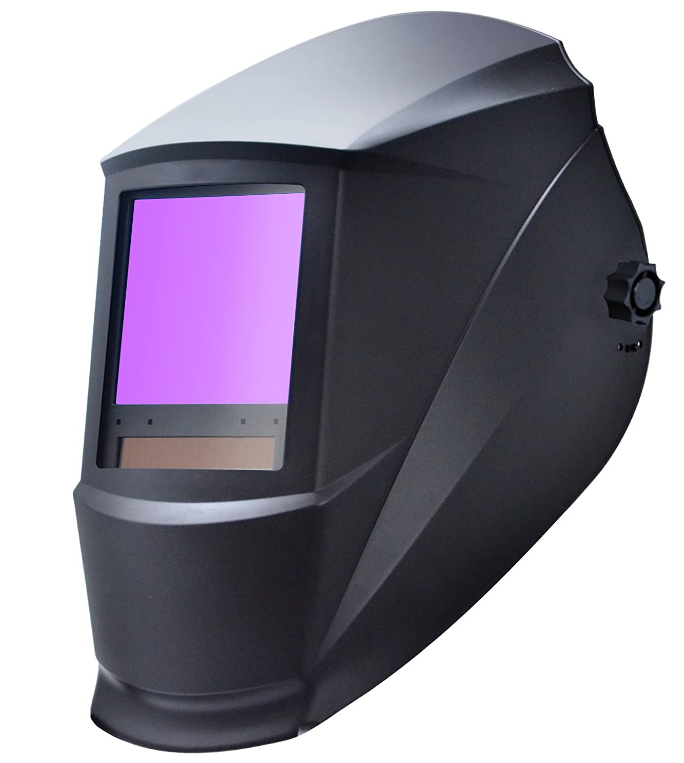

Auto darkening welding helmet


Powered by built-in solar cells and 1 replaceable  battery, this series welding helmet is equipped with 4 arc sensors that activate the auto-darkening filter to switch from light to dark automatically in a split second when an arc is struck. The auto-darkening filter greatly reduces the need to flip the welding helmet up and down between torch placements, which helps to boost productivity by reducing the stop-and-start time needed with passive lens welding helmets. Combining with our revolutionary new design with external controls and adjustments for dark state, sensitivity, and delay, these features greatly reduce the need for grinding and rework by increasing torch placement accuracy, thus saving time, effort and money.

Detail Specifications:

Cartridge Size:

5 ¼ X 4 ½ inches

Viewing Area:

3.94" X 3.86"

Number of Arc Sensors:

Light Shade:


Dark State:

Variable, 5-9/9-13

Shade Control:


Sensitivity Control:

low to high, continuous adjustment

UV/IR Protection:

DIN 16

Power Supply:

Solar cell and replaceable CR2450 battery

Switching Time:

1/30,000s, from Light to Dark

Dark to Light:

0.1 – 1.0 second, continuous adjustment

Tig Amp Rating:

DC >5A, AC>5

Low voltage indicator:


ADF self-check:


Grinding Function:

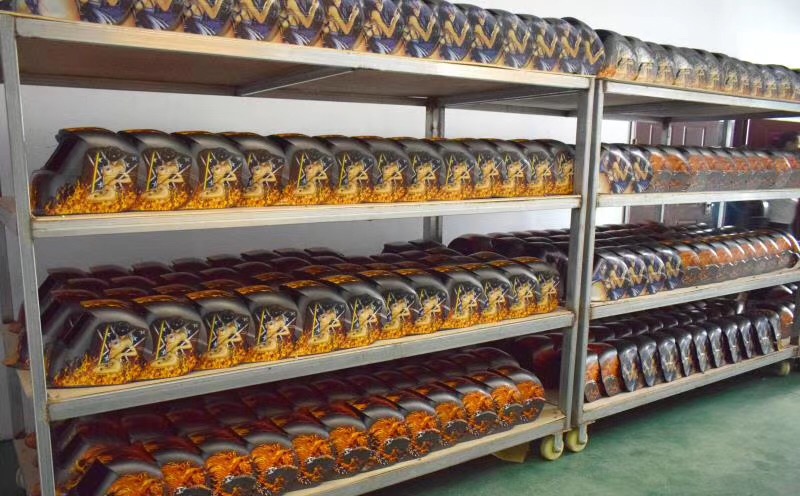

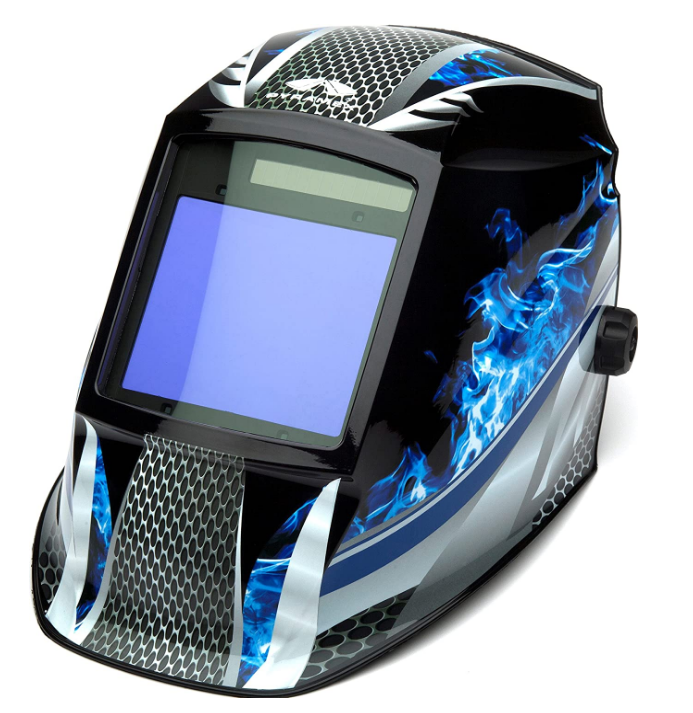

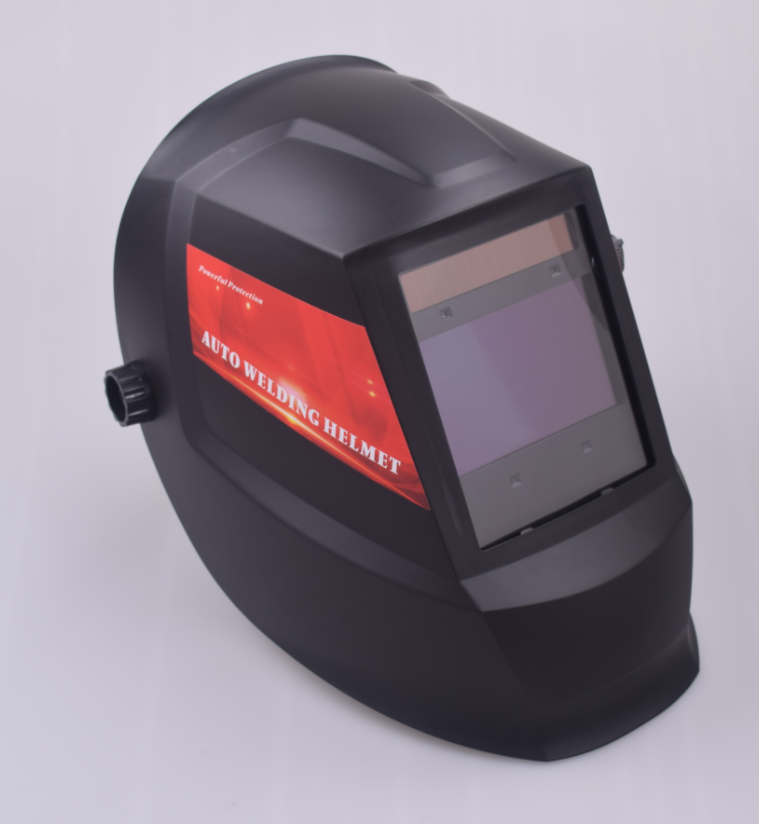

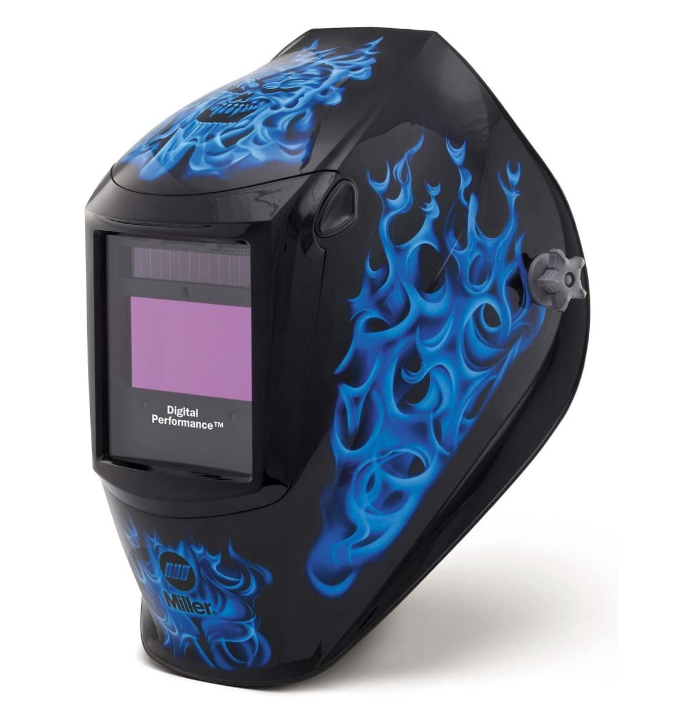

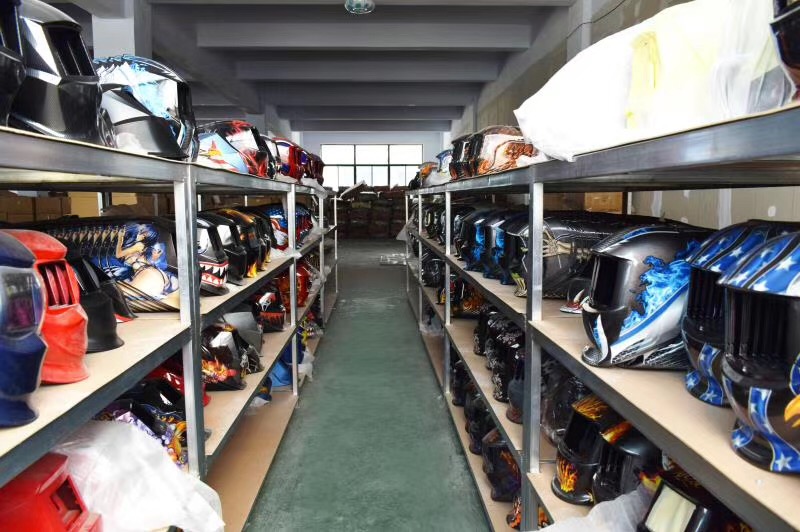

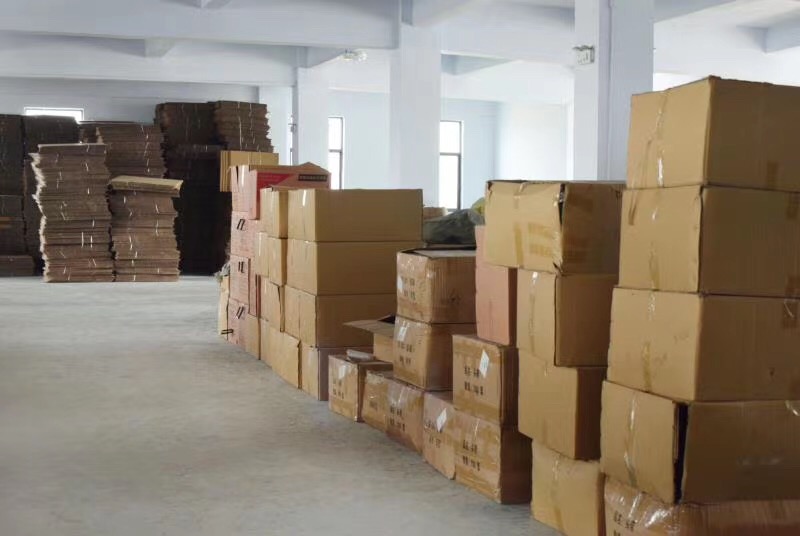

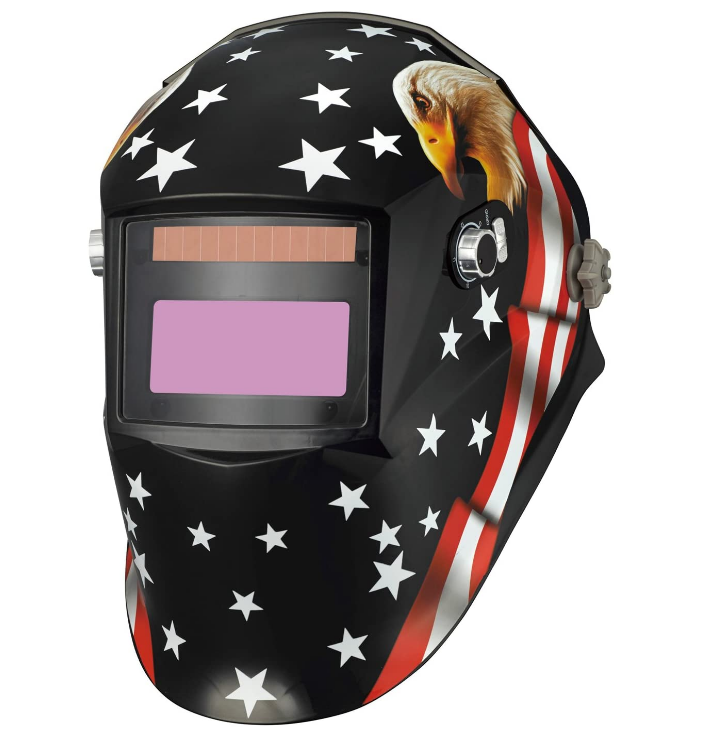

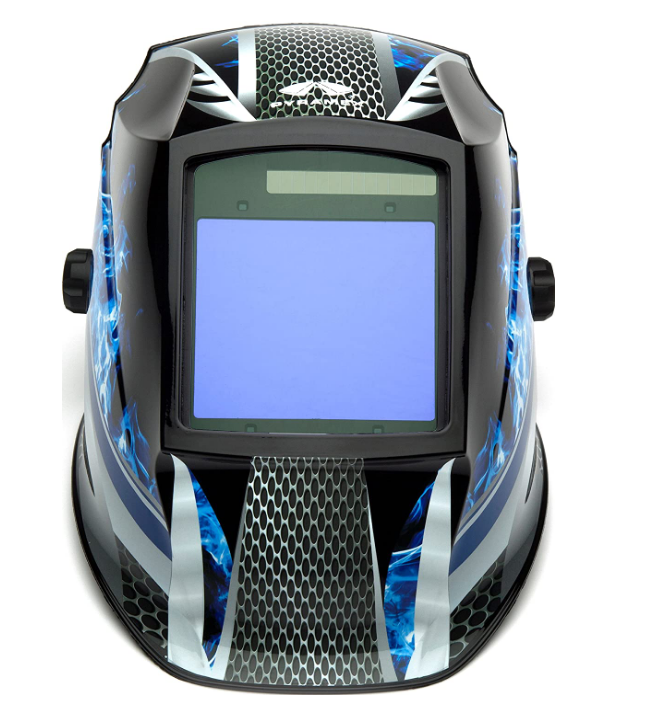

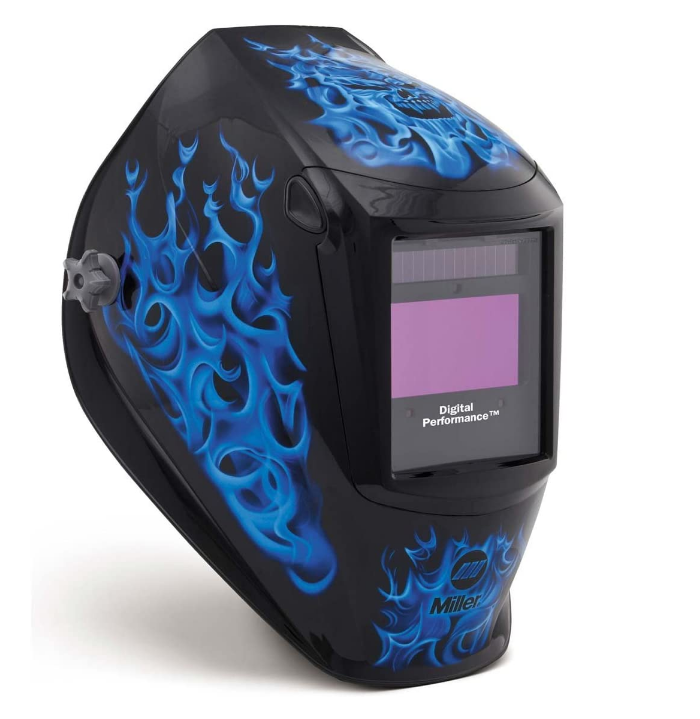

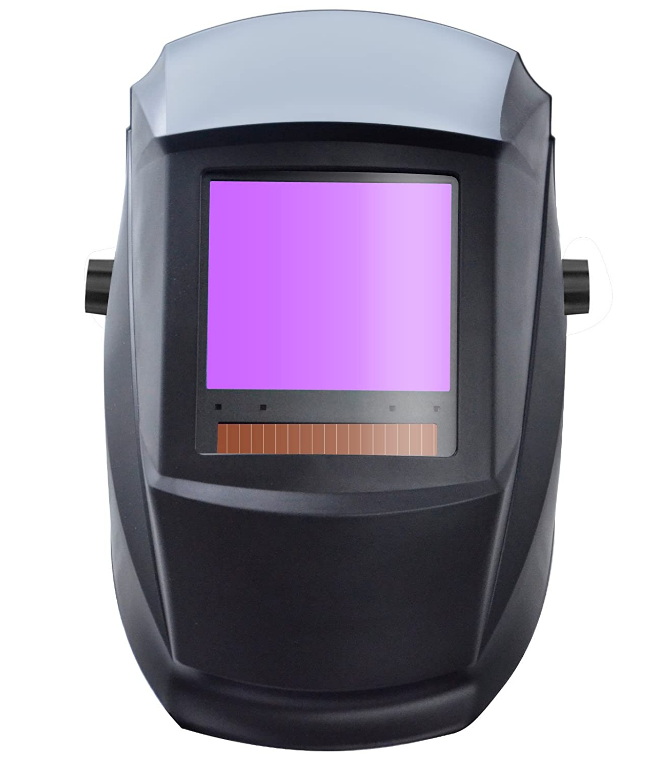

More Pictures:
