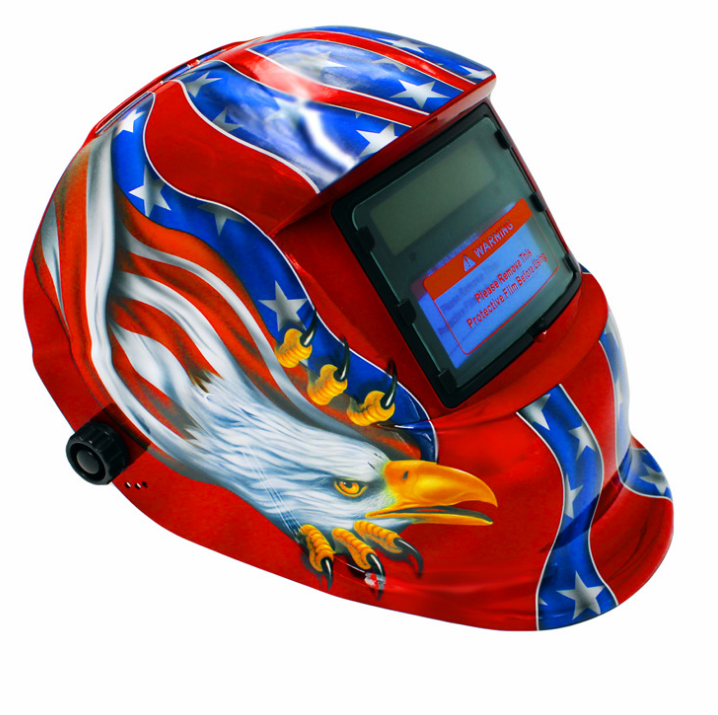

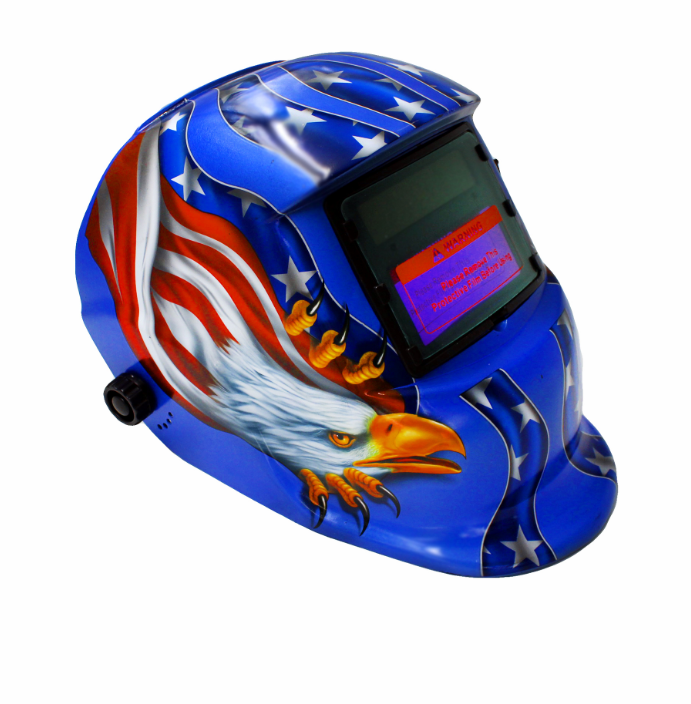

Auto darkening welding helmet
Description:
Powered by built-in solar cells and 1 replaceable battery, this series welding helmet is equipped with 4 arc sensors that activate the auto-darkening filter to switch from light to dark automatically in a split second when an arc is struck. The auto-darkening filter greatly reduces the need to flip the welding helmet up and down between torch placements, which helps to boost productivity by reducing the stop-and-start time needed with passive lens welding helmets. Combining with our revolutionary new design with external controls and adjustments for dark state, sensitivity, and delay, these features greatly reduce the need for grinding and rework by increasing torch placement accuracy, thus saving time, effort and money.
Detail Specifications:
| Power supply | Solar cells,1 lithium button cells |
| Cartidge size | 110*90mm |
| Active viewing area | 93*43mm |
| Light state shade level | DIN4 |
| Dark state shade level | DIN9-13(Outerless control/stepless control) |
| Switching time | Light to dark:1/10000s at room temperature Dark to light time:0.1-0.8s(incuding lighting control function) |
| Sensor system | 2 sensors |
| Operating temp | -10ºC to 65ºC/14ºF to 149ºF |
| Material | pp |
| Weight | 475g |
| Total Weight | 745g |
| Size | 315*245*245mm |

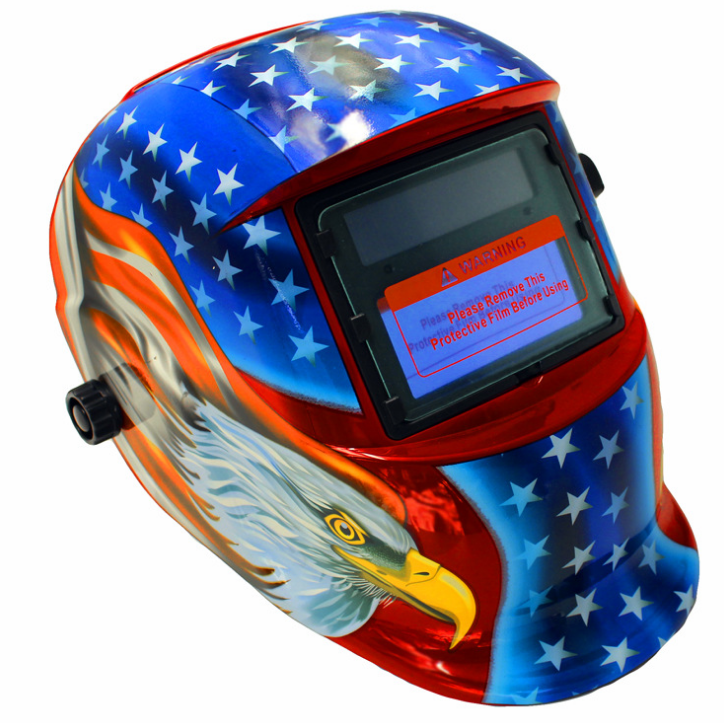

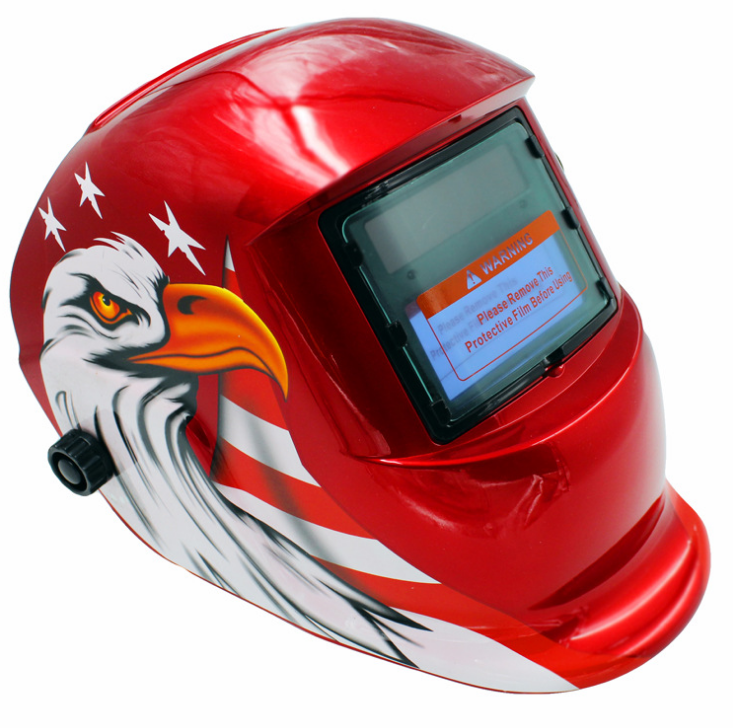

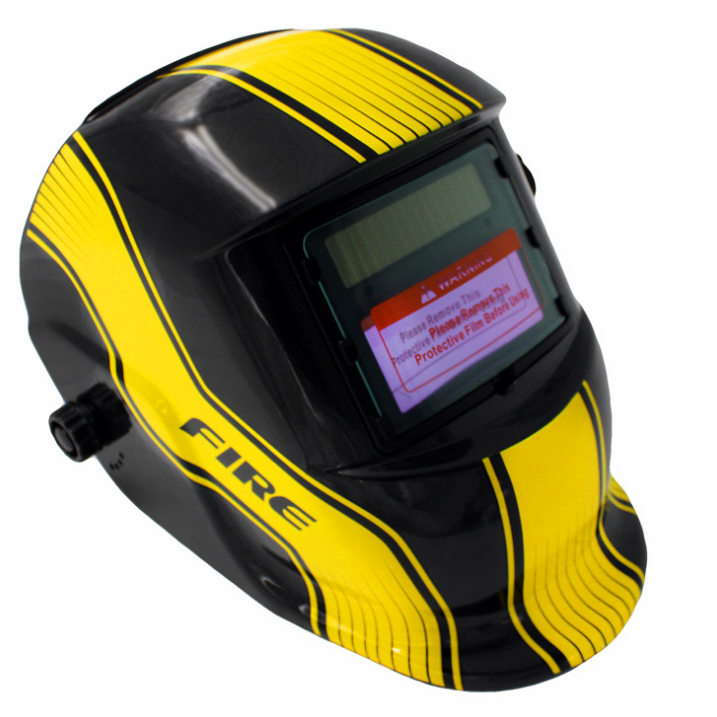

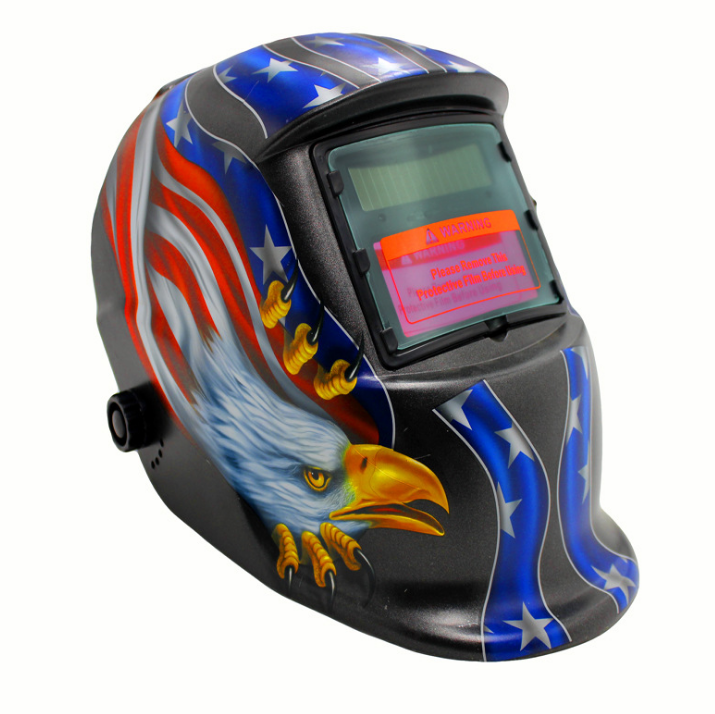

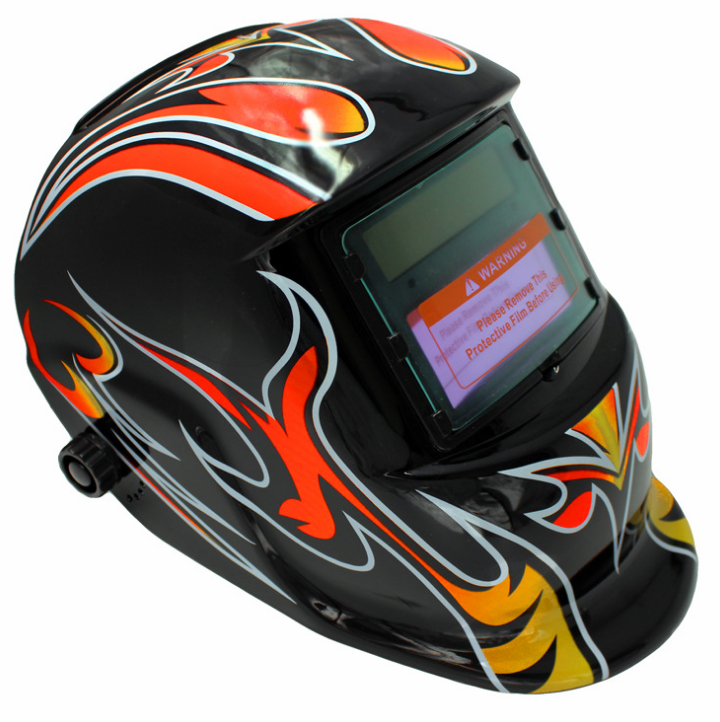

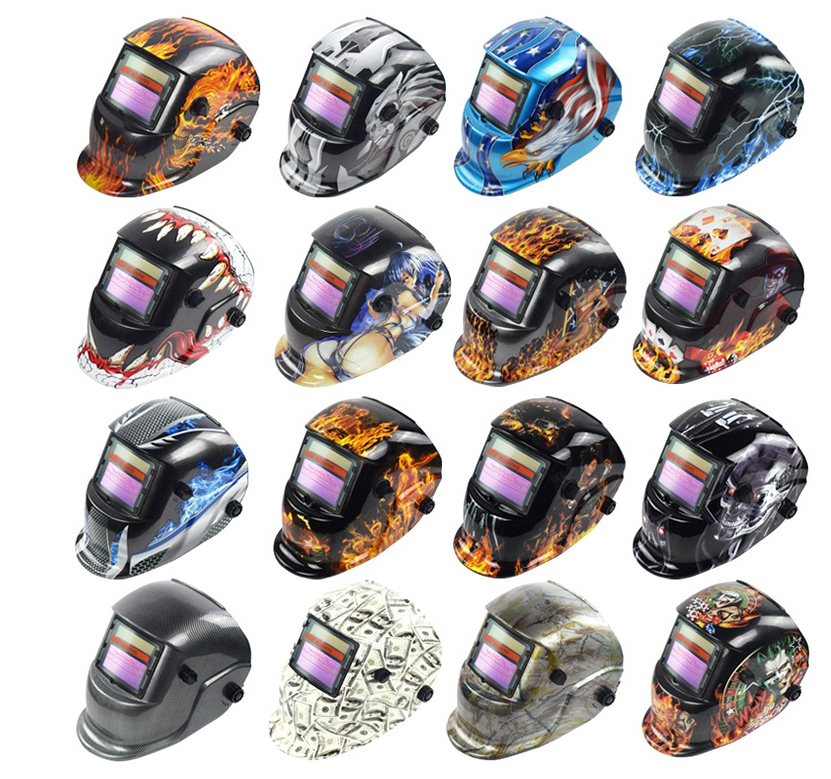

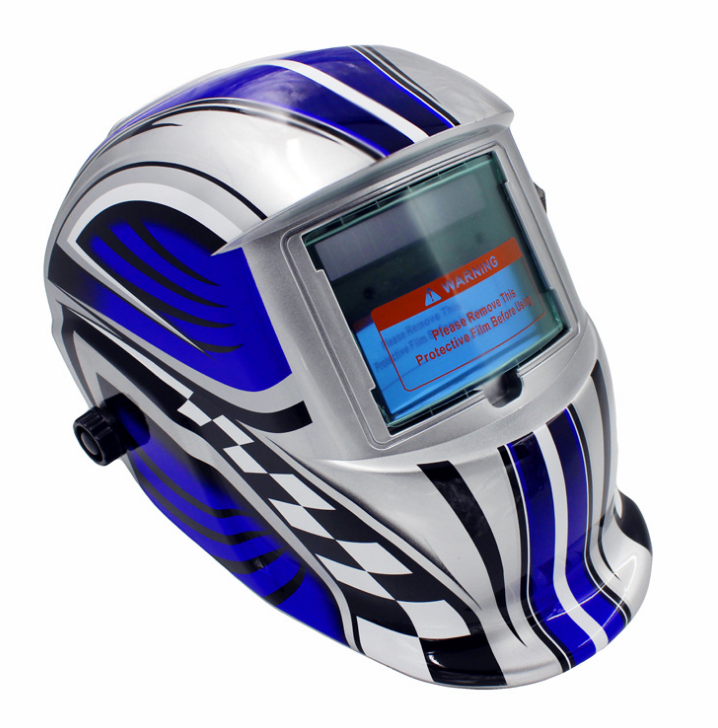

More Pictures:
|
